- Color: Black
- Contact Material: Silver Cadmium Oxide
- Current Rating: 20 A
- Dielectric Strength: 1500 V
- Dimensions: 3.53 in H x 1.3 in W x 1.06 in D
- Model #: 2621BKCC8
- UPC #: 785007042856
- SKU: 0254193
Your shopping list will be used for pickup in-store

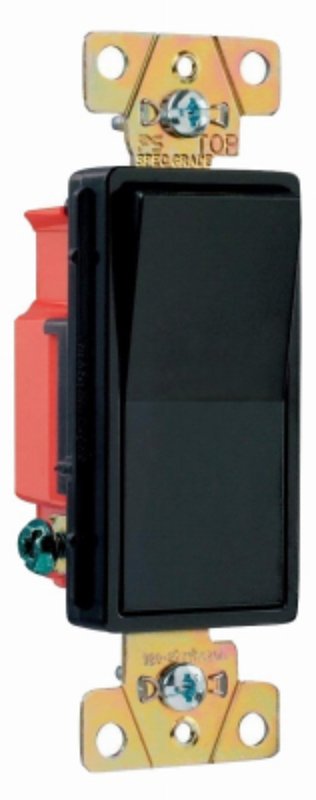

Cushioned thermoplastic paddles assure smooth, quiet long-term use. Integral silver alloy contacts combine with heavy-gauge straps for long-lasting performance. Screw-pressure-plate back wiring (which also supports side wiring) enables fast installation and rock-solid connections.
- Impact-resistant polycarb back body and frame
- Cushioned thermoplastic paddle assures smooth, quiet, long-term operation
- Unique single rocking butterfly contact provides long-term consistent performance with significantly fewer moving parts
- Internal screw pressure plate back and side wire capability for easy installation with #14 to #10 stranded or solid copper/copper clad wire
- Terminals made of high conductivity brass and serrated for maximum wire gripping
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
- Auto-ground clip assures a positive ground to metal box
- Tri-drive ground, terminal and mounting screws
- All terminal screws are backed-out, ready to install
| Color | Black |
|---|
| Contact Material | Silver Cadmium Oxide |
|---|
| Current Rating | 20 A |
|---|
| Dielectric Strength | 1500 V |
|---|
| Dimensions | 3.53 in H x 1.3 in W x 1.06 in D |
|---|
| Housing Material | Polycarbonate |
|---|
| Mounting Type | Screw |
|---|
| Number of Poles | 1 |
|---|
| Operating Cycles | 10000 |
|---|
| Temperature Rating | 30 deg C |
|---|
| Terminal Type | Back Wire Side Wire |
|---|
| Voltage Rating | 120/277 VAC |
|---|
MORE DETAILS:
- Application: For education, hospitality, institutional, lodging, multiple dwelling, office and retail applications
